Optoma ZU2200 22000 lumens WUXGA DLP DuraCore MultiColor Laser Laser Projector
Features Of The Optoma ZU2200 Projector
- ➣ 22,000 Lumens Brightness – High-brightness laser projector for large venues.
- ➣ 4K & HDR Compatible – Delivers sharp and vibrant visuals.
- ➣ DuraCore Laser Technology – Up to 30,000 hours of maintenance-free operation.
- ➣ WUXGA Resolution (1920x1200) – High-definition image quality.
- ➣ Extensive Connectivity – Includes HDMI, 3G-SDI, HDBaseT, and more.
- ➣ 24/7 Operation – Designed for continuous professional use.
- ➣ Motorized Lens Shift, Zoom & Focus – Flexible installation options.
PRODUCT OVERVIEW
Ultra bright professional WUXGA laser projector
The high-brightness ZU2200 professional laser projector fills a need for high-end installations, including the entertainment, exhibition, and digital signage markets. Part of Optoma’s Ultra Bright Series, this projector offers incredibly high brightness of 22,000 lumens as well as extreme flexibility with eight interchangeable lenses to meet the needs of even the most complex installations.
As part of the Optoma DuraCore laser lineup, the Ultra Bright Series high-performance projectors feature 4K HDR compatibility, pure engine video processing, and color matching to produce visually striking, lifelike images with exceptional detail and high color accuracy. Additionally, the ZU2200 achieves superior color rendition through MultiColor Laser (MCL) technology.
|
Strong reliability is at the core of the Ultra Bright Series projectors, with 24/7 operation capabilities, up to 30,000 hours of laser lifetime, and an IP5X rating for optimal and dependable performance, even under more extreme conditions up to 122 degrees Fahrenheit / 50 degrees Celsius. With a robust metal chassis and modular design for easier maintenance, a multitude of connectivity options, and a failsafe redundancy mode for instant source switching, the Ultra Bright Series projectors offer a solution for intricate installations, including multi-projector and dome projection applications. |
 |
Features
|
High brightness WUXGA DLP laser projector |
Extreme installation flexibility |
|
Ultimate reliability |
Striking lifelike images |
Redundant input with fast switching
The unique signal input detection function provides instant source switching in the event of the failure of the signal source device. This feature ensures an image never fails to display in mission-critical installations such as control rooms, live events, or other similar scenarios.
Passive 3D compatibility
Passive 3D is now available on single-chip DLP laser phosphor projectors. Thanks to the high-efficiency light output, these models enable effective 3D solutions for operators to reduce the total cost of ownership.

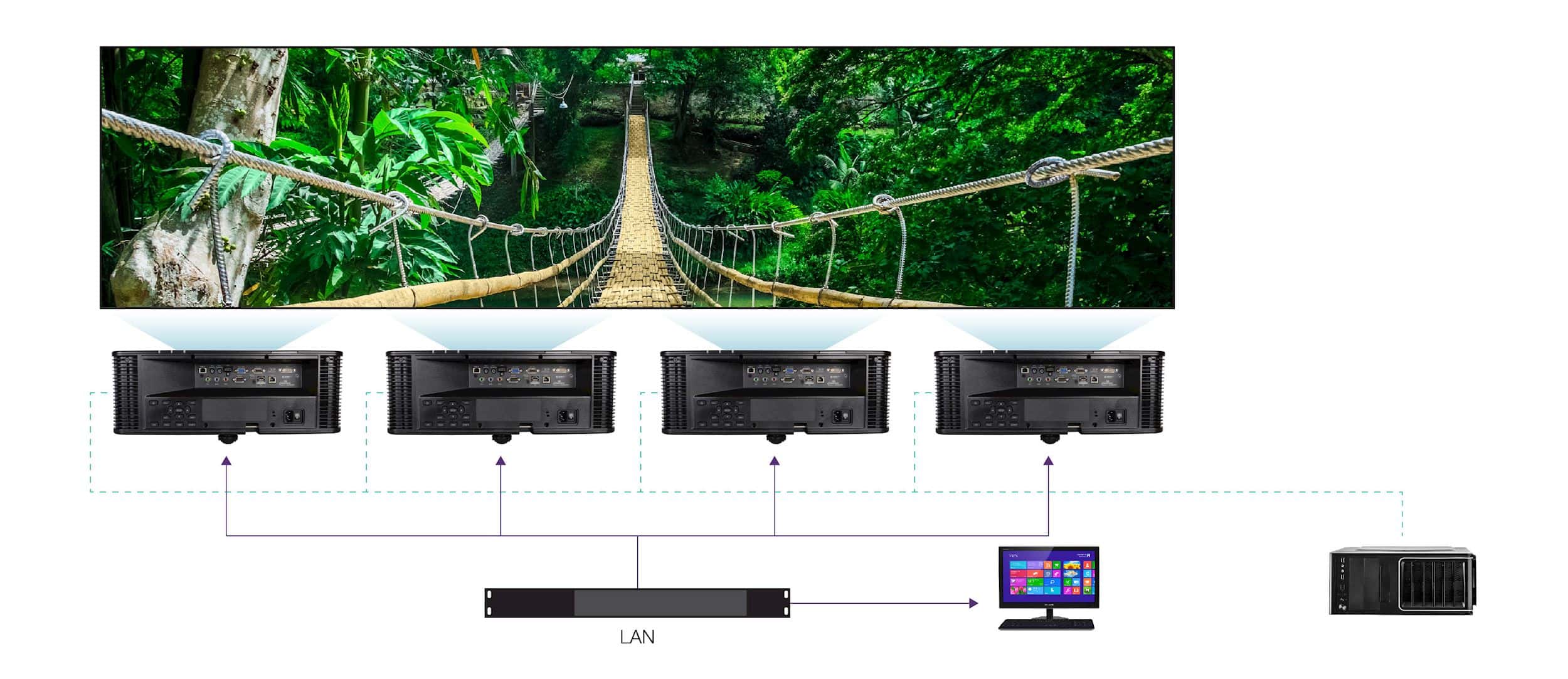

Integrated warping and edge blending processor
Integrated warping and edge blending processors enable multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending are configured using either the projectors on the screen display or with PC software depending on the model.
*A compatible multi-output graphics card with an overlap function is required.
|
Passive 3D compatibility Passive 3D is now available on single chip DLP laser phosphor projectors. Thanks to the high-efficiency light output, these models enable effective 3D solutions for operators to reduce the total cost of ownership. |
|
|
|

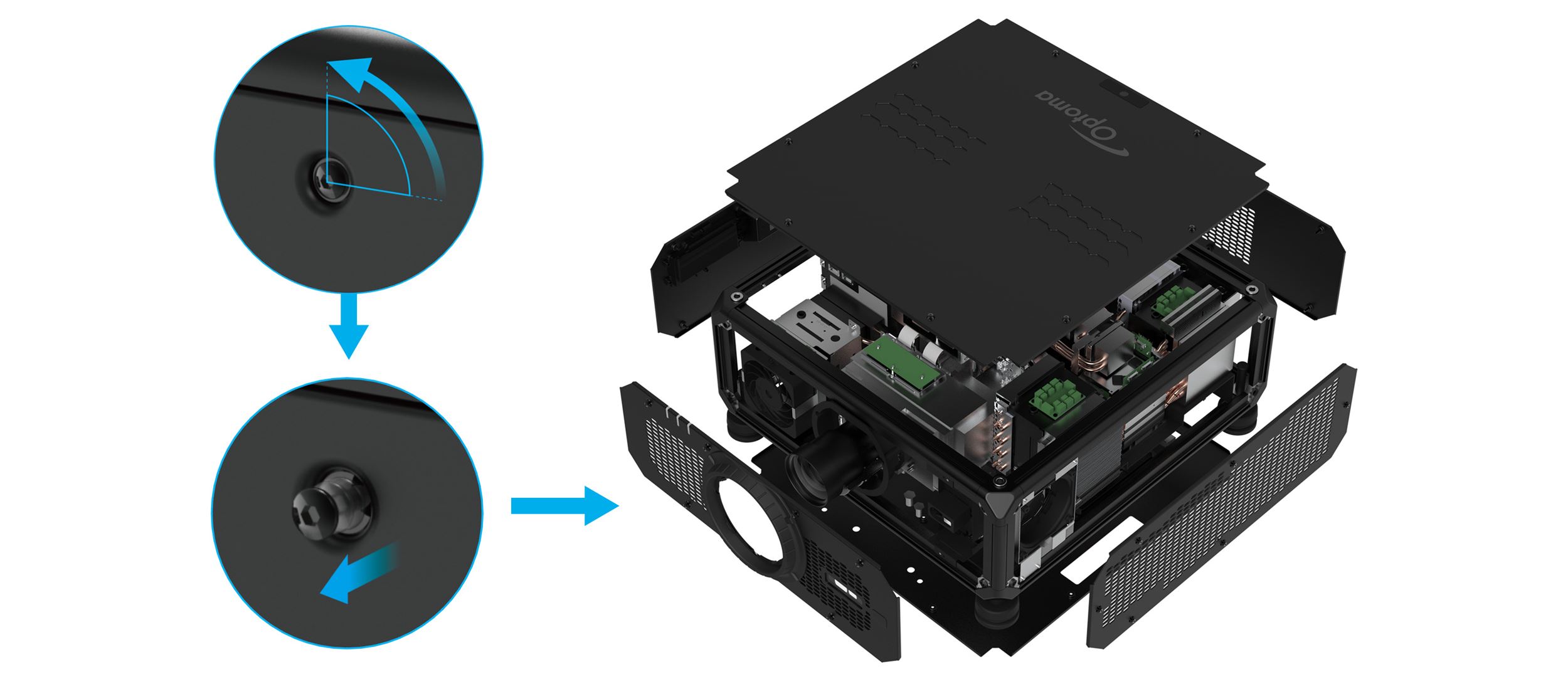

Metal chassis with modular design The modular metal chassis panels and quick-release screws make routine maintenance easier than ever before. |
|
Suitable for various operating environments, the robust and efficient cooling design enables the projectors to withstand an ambient operating temperature range of 0~50°C. |
|
 |
Providing a quick, hassle-free, and more convenient setup; You can enjoy accurate color uniformity in a matter of seconds with the super-fast camera-based auto color uniformity feature. *The auto color uniformity feature is compatible with image sizes up to 300" |
|
Autofocus (AF) Providing a quick, hassle-free, and more convenient setup; You can enjoy a pin-sharp image in a matter of seconds with the super-fast camera-based autofocus. *Autofocus is compatible with image sizes up to 300" |
|
 |
Industry-leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust-resistant design. |
 |
Uncompromising, uncompressed Full HD video, audio, network, and control commands all delivered on a single CAT-type cable capable of up to 100 meters/328 feet without signal loss make installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs. |
 |
Capable of receiving and displaying HDR metadata, Optoma HDR-compatible projectors allow you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window. |
 |
Give powerful presentations and educational lessons with stunning colors. Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations. |
 |
Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings of your projector for optimal precision. |
 |
Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in between. |
 |
Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for fine-tuning installations. |
 |
True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality, no light is emitted from the projector, this gives 100% blackout on the screen. |
|
Extreme Black Extreme black enables the laser diodes to completely turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required. |
|
 |
Full lens shift makes installation simple and hassle-free, offering the flexibility to move the projected image vertically or horizontally, as well as adjusting the screen size without the need to move or reposition the projector. |
 |
Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications. |
 |
With 360° projection,* images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location. |
 |
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image. |
 |
Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry-leading durability; paramount for 24/7 maintenance-free operation in challenging environments. |
|
Have your projector in any color. Choose from any RAL color. Perfect for bespoke installations. *Contact us for more information |
 |
 |
Display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting, and the latest generation game consoles. |
 |
Control Featuring a wide range of options you can control and monitor the projector remotely.
|
 |
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems. |
|
This model can receive commands via Telenet allowing for easy installation with Telnet-compatible control systems. |
 |
|
|
Innovative Multicolour Laser (MCL) technology adds a second red laser to the common blue laser. This results in greatly improved colour performance. |
| Product Name | Optoma ZU2200 22000 lumens WUXGA DLP DuraCore MultiColor Laser Laser Projector |
|---|---|
| Manufacturer | Optoma |
| Projection System | DLP |
| Native Resolution | WUXGA (1920x1200) |
| Lumens | 22,000 lumens |
| Lamp Life | 30,000 hours |
| Lamp Type | DuraCore MultiColor Laser |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 2,000,000:1 |
| Projection Size | Dependent on lens |
| Projection Distance | Dependent on lens |
| Throw Ratio | Dependent on lens |
| Audio Outputs | 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDMI, 1 x 3G-SDI Control 1 x RJ45, 1 x USB-A service, 1 x 12V trigger |
| Input Modes | 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI |
| Bluetooth | No |
| Color | Black |
| Operating Temperature | Operating: 10~85%RH, non-condensing. Storage: 5~90%RH, non-condensing |
| Power Consumption | 0.5W (Standby) | 590W (min) | 1,200W (max) |
| Weight | 54.00 Kg |
| Dimensions (WxDxH) | 650 x 682 x 300.86 mm |
| Package Weight | 66.5 kg |
