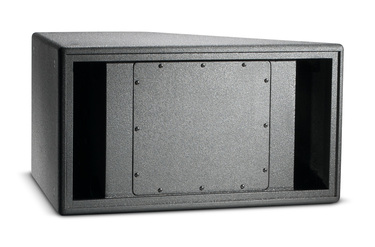

JBL PD5122 Dual 12" Slot-Loaded Low-Frequency Passive Loudspeaker (Each)
Actual Stock Can Be Confirmed After Placing the Order.
All Delivery times are estimated based on the official restrictions.
SKU
PD5122
AED 13,087
AED 12,464
Pay 4 interest-free payments of AED 421.00.Learn more
The PD5122 is intended for use as a flown or ground supported, high power low-frequency module used in conjunction with mid/high-only or full range systems of the PD5000 series.
PRODUCT OVERVIEW
Full Range / Low Frequency
The PD5122 is intended for use as a flown or ground supported, high power low-frequency module used in conjunction with mid/high-only or full range systems of the PD5000 series.
Features
- Dual high power 300 mm (12 in) low-frequency drivers.
- Designed to extend LF pattern control of PD6322 systems.
- Slot-loaded configuration duplicates the LF performance of PD6322.
| Product Name | JBL PD5122 Dual 12" Slot-Loaded Low-Frequency Passive Loudspeaker (Each) |
|---|---|
| Weight | 36.40 Kg |
| Frequency Response | 49 Hz to 300 Hz ( ± 3 dB) |
| Frequency Range | 41 Hz to 1 kHz (-10 dB) |
| Power Capacity | Passive: 4800 W Peak (at 4 Ohms) |
| Maximum SPL | 134 dB SPL |
| Impedance | 4 ohms in parallel-drive mode |
| Sensitivity | 116 dB-SPL |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply |
| Mounting | 20 x M10 (Bottom, Each Side, Rear, Top) |
| Dimensions | Horn Only: 8.2 x 11.2 x 11.3" (20.6 x 28.5 x 28.7 cm) With Mounting Bracket: 8.9 x 11.2 x 11.3" (22.4 x 28.5 x 28.7 cm) (depth excludes cable exit) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
