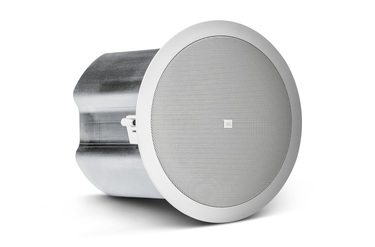

JBL CONTROL 16C-VA 6.5" Two-Way Co-axial Ceiling Loudspeaker (Each)
Control 16C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 165 mm (6.5 inches) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with a pre-attached blind-mount backcan for quick and easy installation.
PRODUCT OVERVIEW
Two-Way 6.5" Co-axial Ceiling Loudspeaker for EN54-24 Applications
Control 16C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 165 mm (6.5 inches) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with a pre-attached blind-mount backcan for quick and easy installation.
The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/ waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on-axis.
Features
- Components:
• 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter - EN54-24 Compliant
- Blind-mount backcan for quick and easy install
- Combined 70V/100V and low impedance direct operation
• 50 Watts at 8Ω nominal setting
• 30W multi-tap at 70V/100V - 62 Hz – 20 kHz bandwidth with wide 110° coverage
- High 91 dB sensitivity for high maximum SPL
| Product Name | JBL CONTROL 16C-VA 6.5" Two-Way Co-axial Ceiling Loudspeaker (Each) |
|---|---|
| Weight | 3.40 Kg |
| Frequency Response | 96 Hz – 15 kHz |
| Frequency Range | 62 Hz – 20 kHz |
| Power Capacity | 100W Continuous Program Power 50W Continuous Pink Noise |
| Maximum SPL | 108 dB @ 1 m (3.3 ft) average, 116 dB peak |
| Impedance | » 8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz) |
| Sensitivity | 91 dB |
| Enclosure | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; zinc-plated steel backcan |
| Mounting | In Ceiling |
| Dimensions | 253 mm diameter x 262 mm from back of baffle to back of gland nut (10.0 in diameter x 10.3 in depth) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
