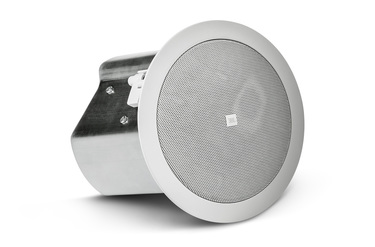

JBL Control 14C-VA Two-Way 4" Coaxial Ceiling Loudspeaker for EN54-24 Applications (Each)
Control 14C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 100 mm (4 inches) high tech cone driver and a 19 mm softdome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with a pre-attached blind-mount back for quick and easy installation.
PRODUCT OVERVIEW
Two-Way 4" Co-axial Ceiling Loudspeaker for EN54-24 Applications
Control 14C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 100 mm (4 inches) high tech cone driver and a 19 mm softdome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with a pre-attached blind-mount back for quick and easy installation.
The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/ waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on-axis.
Features
- Components:
• 100 mm (4 in) high output driver with polypropylene cone and butyl rubber surround
c • 19 mm (0.75 in) soft-dome liquid-cooled tweeter - EN54-24 Compliant
- Blind-mount backcan for quick and easy install
- Combined 70V/100V and low impedance direct operation
• 30 Watts at 8Ω nominal setting
• 25W multi-tap at 70V/100V - 74 Hz – 20 kHz bandwidth with wide 120° coverage
| Product Name | JBL Control 14C-VA Two-Way 4" Coaxial Ceiling Loudspeaker for EN54-24 Applications (Each) |
|---|---|
| Weight | 2.20 Kg |
| Frequency Response | 100 Hz – 15 kHz |
| Frequency Range | 74 Hz – 20 kHz |
| Power Capacity | 60 Watts Continuous Program Power 30 Watts Continuous Pink Noise |
| Maximum SPL | 102 dB @ 1 m (3.3 ft) average, 108 dB peak |
| Impedance | 8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz) |
| Sensitivity | 87 dB (1kHz - 16 kHz) |
| Mounting | In Ceiling |
| Dimensions | 196 mm diameter x 217 mm from back of baffle to back of gland nut (7.7 in diameter x 8.6 in in depth) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
