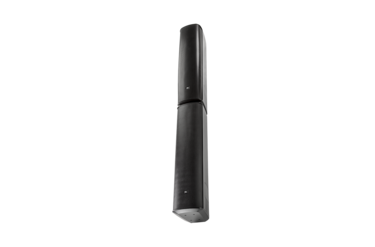

JBL CBT 1000E Purpose Designed Extension Loudspeaker for CBT1000 Speaker (Each)
When connected to a CBT1000 line array column speaker, the CBT1000E Extension provides an extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.
PRODUCT OVERVIEW
When connected to a CBT1000 line array column speaker, the CBT1000E Extension provides an extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.
Features
- Components: Six (6) 165 mm (6.5 in) high-excursion LF drivers (CBT1000E)
- 1500 Watt power handling (CBT1000E)
- Built-in purpose-designed crossover network, for combining with CBT1000 (CBT1000E)
- Coupler plate included (CBT1000E)
- Extended pattern control
- Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E)
- 3000-watt power handling (CBT1000+1000E)
- Patent-pending Constant Beamwidth Technology ™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
- Vertical pattern coverage is individually adjustable through a range of four (4) “Pattern Up” angles and four (4) “Pattern Down” coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing (CBT1000)
- Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room (CBT1000)
- Single-speaker system room coverage at high SPL, with little over-splash and strong bass response down to below 38 Hz (CBT1000+1000E)
- Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode (CBT1000)
- Swivel (pan)/tilt wall bracket and coupler plate included.
| Product Name | JBL CBT 1000E Purpose Designed Extension Loudspeaker for CBT1000 Speaker (Each) |
|---|---|
| Weight | 20.00 Kg |
| Frequency Response | 38 Hz – 650 Hz |
| Frequency Range | 38 Hz – 650 Hz |
| Power Capacity | 1500 W (6000 W peak), 2 hours 1000 W (4000 W peak), 100 hours |
| Maximum SPL | 124 dB full space, 130 dB half-space (65 to 300 Hz) |
| Impedance | 8 ohms |
| Sensitivity | 2.83 V at 3.3' (1 m), average 2 to 6 kHz: 92 dB full space 98 dB half-space (65 to 300 Hz) |
| Enclosure | Fiberglass reinforced ABS cabinet, powder-coated 1050 aluminum grille |
| Mounting | 14 x M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket |
| Dimensions | 2040 mm x 250 mm x 345 mm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
