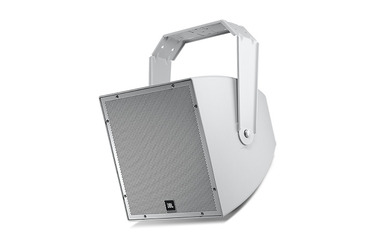

JBL AWC159 15" Gray All Weather Coaxial Loudspeaker (Each)
The AWC159 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
PRODUCT OVERVIEW
All-Weather Compact 2-Way Coaxial Loudspeaker with 15" LF
The AWC159 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
- Features
- Highly weather-resistant IP56 rating
- Consistent 90° x 90° broadband pattern control
- Components:
• 380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
• 38 mm (1.5 in) diaphragm compression driver with patented design and high temperature polymer diaphragm. - Extraordinary clarity for speech, with extended frequency response for music.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- 500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
- High-power passive crossover network.
- 52 Hz – 20 kHz frequency response.
- 300 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.
| Product Name | JBL AWC159 15" Gray All Weather Coaxial Loudspeaker (Each) |
|---|---|
| Weight | 20.60 Kg |
| Frequency Response | 80 Hz – 20 kHz |
| Frequency Range | 52 Hz – 20 kHz |
| Power Capacity | 500 W (2000 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs |
| Maximum SPL | Direct 8Ω: 125 dB (peaks of 131 dB) 300 W Tap: 123 dB (peaks of 129 dB) |
| Impedance | 8 ohms |
| Sensitivity | 98 dB (Ave. 80 Hz – 20 kHz) |
| Enclosure | ABS with Glass enclosure, heavily braced |
| Dimensions | 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet 507 mm (19.9 in) depth with gland nut 546 mm (21.5 in) including bracket extending to back |
| Color | Grey |
| Country of Origin | United States |
