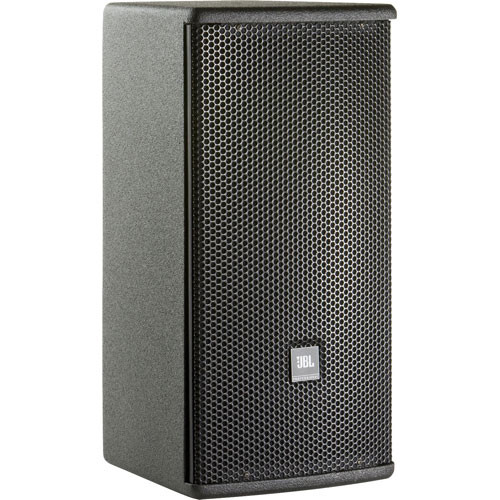

JBL AC18/26 8" Ultra Compact B 2-Way Loudspeaker (Each)
The AC18/26 B (Black) from JBL is a 2-Way loudspeaker with an 8" LF driver ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 500W of program power and has a 1" HF driver with field rotatable 120 x 60° Coverage PT Waveguide. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC18/26 B has attachment points for the optional U-bracket or OmniMount.
PRODUCT OVERVIEW
The AC18/26 B (Black) from JBL is a 2-Way loudspeaker with an 8" LF driver ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues.
This speaker can handle up to 500W of program power and has a 1" HF driver with field rotatable 120 x 60° Coverage PT Waveguide.
Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC18/26 B has attachment points for the optional U-bracket or OmniMount.
Compact 2-way Loudspeaker with 1 x 8” LF
High output, 2-way loudspeaker systems combining flexibility with high fidelity
Features
- 1” Exit Compression Driver Coverage PT™ Waveguide
- 205 mm (8 in) LF transducer
- Compact enclosure
- 500W Program
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
| Product Name | JBL AC18/26 8" Ultra Compact B 2-Way Loudspeaker (Each) |
|---|---|
| Weight | 12.80 Kg |
| Frequency Response | 63 Hz - 19 kHz |
| Frequency Range | 52 Hz - 20 kHz |
| Power Capacity | 250 W RMS 500 W Program 1000 W Peak |
| Maximum SPL | 116 dB |
| Impedance | 8 Ohms |
| Sensitivity | 92 dB SPL |
| Enclosure | 12 mm and 15 mm exterior grade multi-ply hardwood plywood |
| Dimensions | 469.9 x 237.5 x 254.0 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
