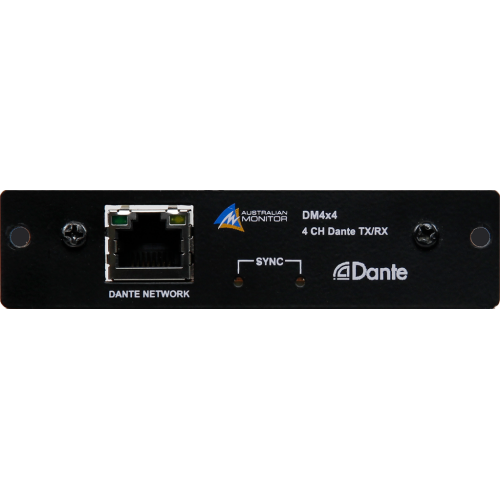

Australian Monitor DM4X4 Dante 4 Input & 4 Output Expansion Card
Actual Stock Can Be Confirmed After Placing the Order.
All Delivery times are estimated based on the official restrictions.
SKU
DM4x4
Pay 4 interest-free payments of AED 421.00.Learn more
Provides 4 inputs channels from a Dante network which can be routed to any amplifier output channel. In addition, 4 Dante® outputs channels are available to route any analogue inputs back on to the network.
PRODUCT OVERVIEW
Dante® expansion card for use with the IS series of power amplifiers.
Provides 4 inputs channels from a Dante network which can be routed to any amplifier output channel. In addition, 4 Dante® outputs channels are available to route any analogue inputs back on to the network.
Note: Due to restrictions in the Dante solution, the DM4x4 only supports 2 transmit and 2 receive flows (A flow can contain up to 4 audio channels). This means that the Dante audio connected must be in one of the following modes.
- device containing 4 audio streams
- 2 devices containing 2 audio streams
It does not support 4 devices containing 1 audio stream (This would need 4 flows).
This restriction applies to both receive and transmit directions.
| Product Name | Australian Monitor DM4X4 Dante 4 Input & 4 Output Expansion Card |
|---|---|
| Weight | 1.00 Kg |
| Manufacturer | Australian Monitor |
| Color | Black |
| Country of Origin | India |
